How I Currently Have A Windows Server 8 Hyper-V Cluster Configured

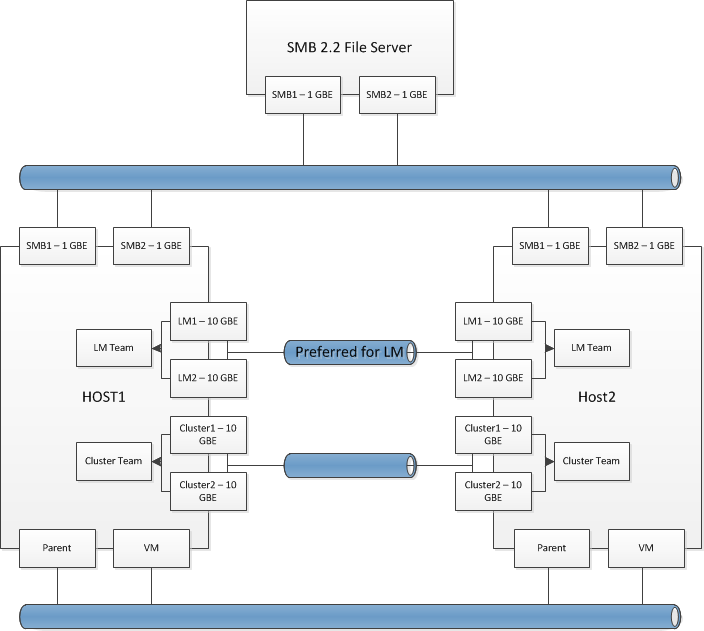

The great thing about a lab with lots of NICs is that you can configure in lots of ways.  Today I built out a new Windows Server 8 Hyper-V cluster, using SMB 2.2 as the storage for the VMs.  This is how I configured it:


You might notice that the configuration isn’t all that different from what you’re used to.  You still require certain communication channels.  How you create those channels can vary wildly in Windows Server 8.  In W2008/R2 you require physical NICs.  In the new version of Hyper-V you can do that, you can create that same effect with native NIC teams to aggregate bandwidth (as I did here), or you can create converged fabrics (as few as 2 physical NICs), or fabrics with isolation, and on and on.  But you still need 2 channels for the cluster, as you can see in the middle of my diagram.

I went a little nuts then.  I used my PowerShell script to create 76 VMs.  Off I went to a meeting, and they were waiting for me when I came back.  And then I did my first stress test of concurrent Live Migration.  You can see that I had a 20 GbE pipe made up of 2 * 10 GbE NICs in a NIC team.  It ran pretty quickly … 38 GB of VM RAM from Host1 to Host2.  I think I might try to script that Live Migration, and run it back and forth again and again to see what happens Smile

4 thoughts on “How I Currently Have A Windows Server 8 Hyper-V Cluster Configured”

  1. So, are the boxes on the perimeter of the Hosts, physical NICs? And thats 8 physical NIC’s in each of the hosts?

    1. 2 hosts currently configured with 4 * 1 GbE NICs and 4 * 10 GbE NICs, and 1 file server with 2 * 1 GbE NICs.

  2. 2 questions:
    1) Is your SMB 2.2 file server a Win8 vm or a dedicated “bare metal” box
    2) Would the file server benefit from having 10 Gbe NICs

    1. 1) At this stage, it’s a PC with some extra disk and an additional NIC.
      2) Yes, and even RDMA if I had the h/w. But the PC has 2 * 1 GbE NICs.
